Dirt Separator and Deaerator

TOTEM PROTECTION KIT

Boiler system / heat pump protection kit

MAIN CHARACTERISTICS

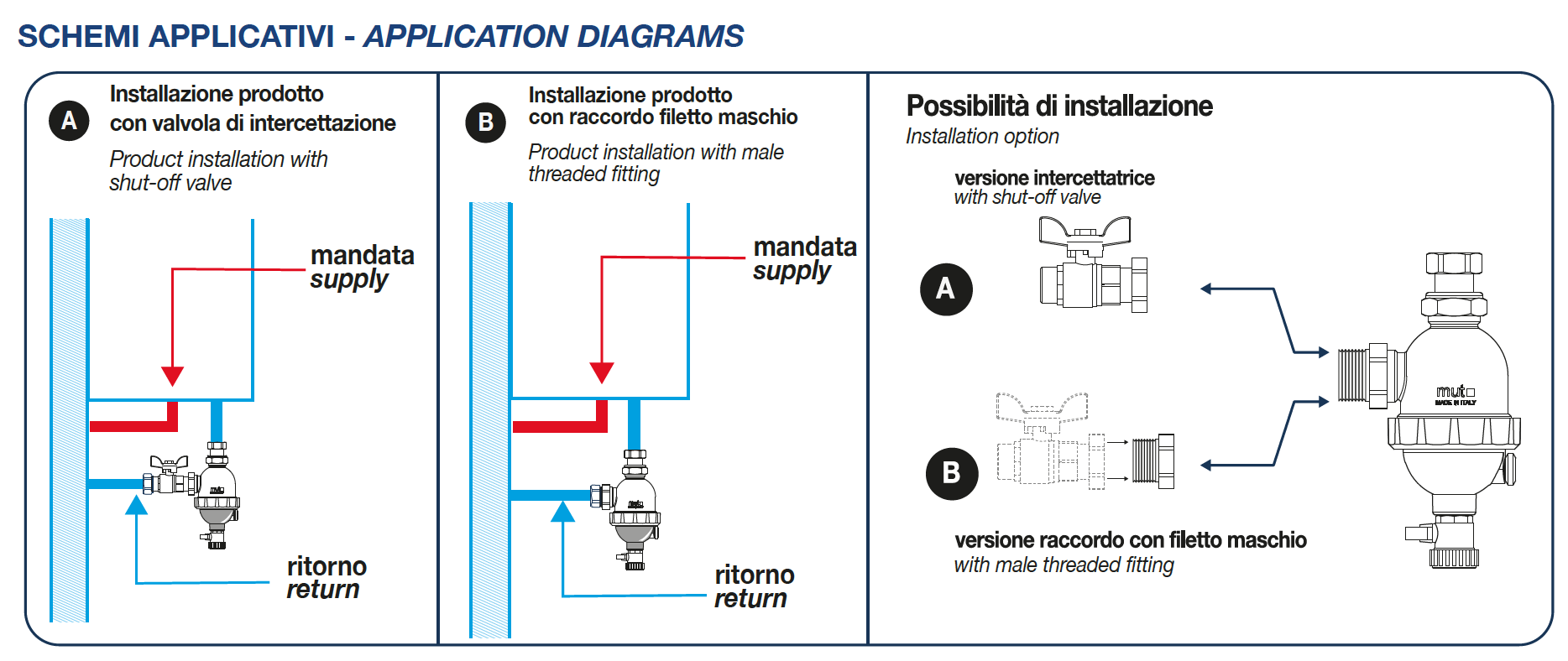

TOTEM® is a kit for the total protection of the heating/cooling water circuit (boiler or heat pump). It’s composed by a “cyclonic filter / high efficiency magnetic dirt separator” - easy to inspect and maintain - and by a protective powder, contained in a convenient small bag. The content of the protective powder is to be used to protect circuits of heating/cooling systems with a water content of up to 180 liters. TOTEM® guarantees maximum protection of boilers, heat pumps, water circulators, plate exchangers and hydronic circuits for heating or coolingTOTEM®  “cyclonic filter / high efficiency magnetic dirt separator” is equipped with a shut-off valve (at the inlet to TOTEM®) and with a retention valve (oulet from TOTEM®) The main body is made of the product is made by an high strength technopolymer. The lower part of TOTEM®  (decanter) is made of transparent technopolymer, allowing to check the need to carry out the discharge of impurities collected on the bottom. Inside the “body”, in a transverse position to the water flow direction, there is a special cyclonic filter with 6 stages : impurities must pass through the filter, and thanks to  reduction in flow speed they settle more easily on the decanter. TOTEM®  is also equipped in the bottom part of a magnetic cartridge (20,000 GAUSS), used for the separation of the ferrous impurities. Impurities and mud evacuation is fast and simple by opening the drain valve on the bottom.

CHEMICAL POWDER CONDITIONER WITH ANTI-CORROSIVE, ANTI-SCALING AND ANTI-ALGAE effects – single bag of 50 g: The protective powder is a chemical compounds based on Molybdenum that effectively inhibits corrosion on steels, copper, copper alloys, aluminum alloys, in the water heating circuit of the boiler / heat pump . WARNING! READ CAREFULLY THE INSTRUCTIONS OF USE! Do not use in the domestic hot water circuit!



Download
product details

SPECIFICATION SUMMARY

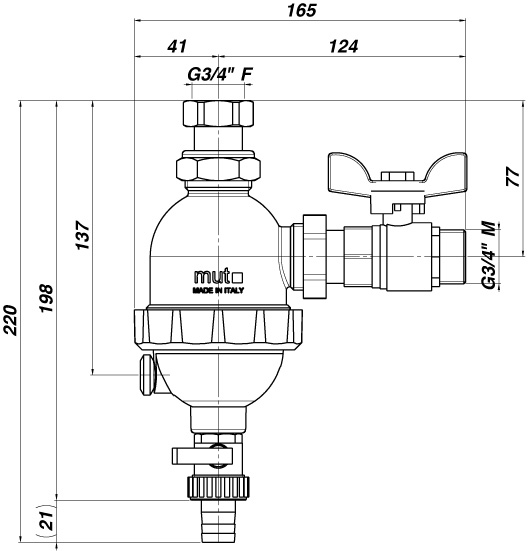

Art. 7.030.02509 TOTEM  Series Dirt separator in high-tech thermoplastic composite material with magnet. Dirt separator’s body: PA66G30. Standard connections: Inlet G 3/4” F – Outlet G 3/4” F (ISO 228-1). Brass drain valve G ½” with hose connection. Hydraulic seals: EPDM/VYTON. Medium water and glycol solutions; maximum percentage of glycol 30%. Maximum working pressure 3 bar. Working temperature range 0÷90°C. Magnetic cartridge easily extractable with high magnetic induction (2x Samarium-cobalt magnets: 2 x 1 T = 2 x 10000 gauss) to retain at the best level the ferromagnetic impurities. Included 1 pack of powder protective conditioner (50 g) with anti-corrosive, anti-scaling and anti-algae action.

Art. 7.030.02511 (KIT 1 bag) Chemical conditioner in powder based on molybdenum with anticorrosive action, antiscaling and anti-algae for closed heating and / or cooling circuits. single-dose bag of 50 g. the content of each bag conditions a 150/180 liter system. its action is not inhibited if glycol with antifreeze function is present in the circuit. perfectly compatible with the plastic materials and elastomers normally present in the hydronic circuits.

Art. 7.030.02512 (KIT 6 bag) Chemical conditioner in powder based on molybdenum with anticorrosive action, antiscaling and anti-algae for closed heating and / or cooling circuits. single-dose bag of 50 g. the content of each bag conditions a 150/180 liter system. its action is not inhibited if glycol with antifreeze function is present in the circuit. perfectly compatible with the plastic materials and elastomers normally present in the hydronic circuits.
