Mixing and shunt rotor valves
SERIES 3000 MIXING AND DEVIATING VALVES Model VM AND 3000R MOD.
MAIN AND OPERATING CHARACTERISTICS
This type of valve is used in central heating systems to guarantee a hot return to the boiler and consequently keep thermal levels high enough to prevent vapor condensation. Mixing, with a linear characteristic curve for delivery and return water, is performed by the shape of the profiled paths. Mixing is done by a rotor with circular segment in the three-way model and by a butterfly rotor in the four-way model. MUT valves are furnished with manual controls.
They can be motorized at any time and without any problems by using MUT V series motors and/or motors marketed by manufacturers of control systems.

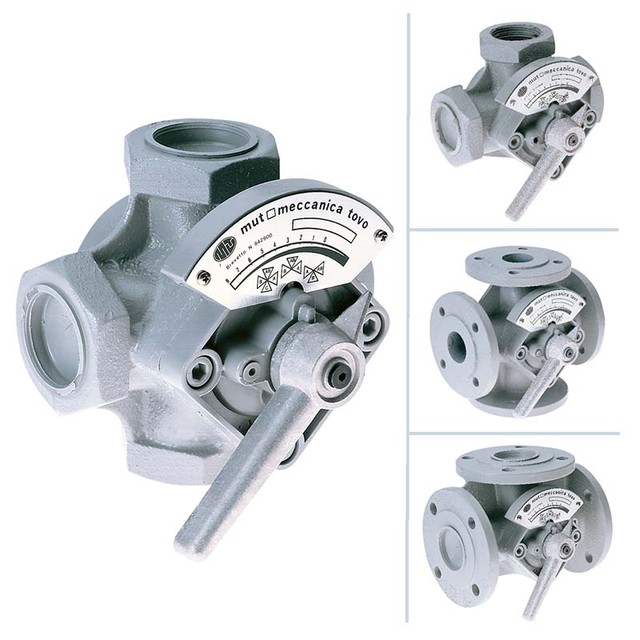

MUT series 3000 valves are made with a brass body and internal rotor. The rotation angle of the rotor, used for regulation, is approximately 90° and corresponds to the graduations going from 0 to 10 on the identification plate (it is without stops and can consequently rotate 360°).
